BEAMS / TIES

NOTE 61/4" X 91/2" BEAM

» Internal plastic reinforcement

» Reduced voids

» Better installation

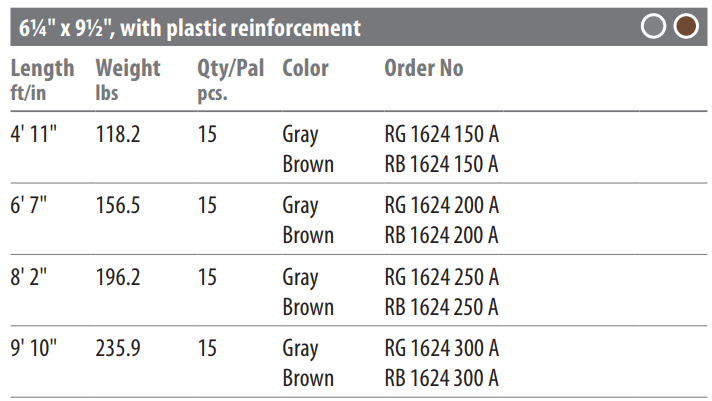

61/4" x 91/2" beams are produced with an internal plastic reinforcement. This results in a higher density and provides improved screw connections.

TIPS & TRICKS

hanit® profiles are perfect for bulk storage bays and bunkers.

» We recommend the following sizes:

- Bulk storage back wall: 6¼" x 9½" x 6' 10"

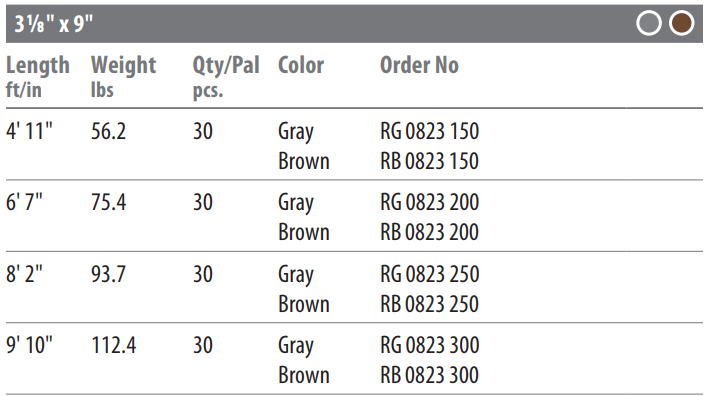

- Bulk storage side wall: 3⅛" x 9" x 6' 10"

» The distance between steel beams needs to be approx. 1% wider than the length of the profiles, due to the expansion properties of the beams.

» The bottom profile of each panel should be attached with a post anchor.

» The individual layers will be connected through screws, bolts, or a connecting board.

» Profile dimensions can vary slightly. For this reason, only install the steel posts after the profiles have been delivered and measured

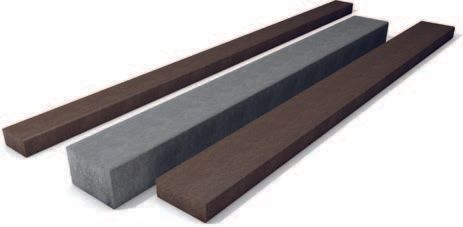

BEAMS

NOTE

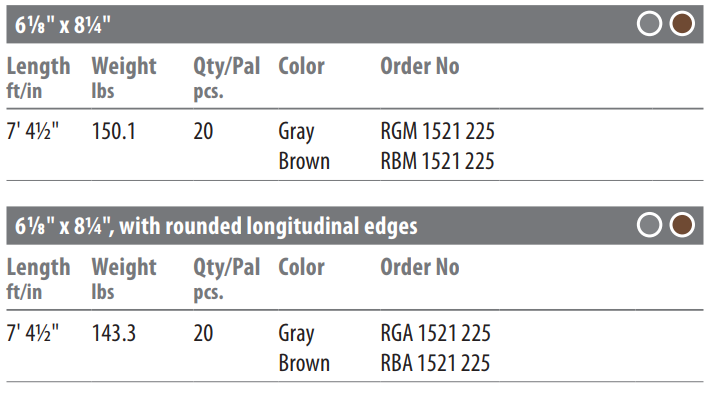

» Product with rounded, circumferential edges with R40 radius

» Ideal for use in water construction, e.g. fish ladders
